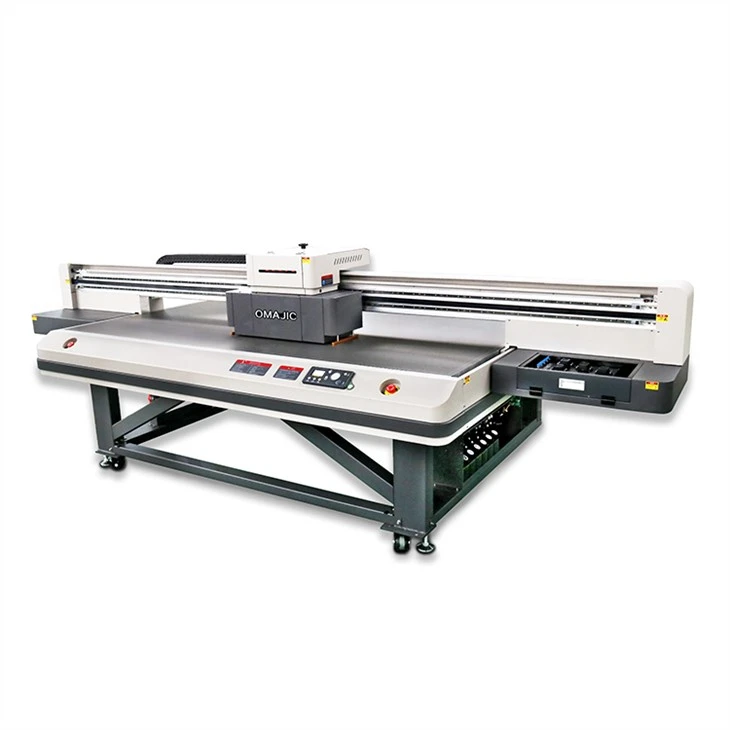

Loj hom UV Flatbed tshuab luam ntawv
Lub taub hau board: Hoson board
Printing loj: 2500 * 1300mm
Sau qhov siab: 100mm
Printing ceev: 4 dhau CMYK plus W plus V=3 taub hau, Ceev yog 11sqm/h
4 hla 2CMYK ntxiv rau 2W=4 taub hau, ceev yog 19sqm/h
4 hla 4CMYK=4 taub hau, ceev yog 30sqm/h
Hauj lwm lawm
Kev tsis
Product Description ofLoj hom UV Flatbed tshuab luam ntawv
Loj hom UV flatbed tshuab luam ntawv yog cov tshuab luam ntawv tsim rau kev lag luam thiab kev lag luam luam ntawv. Lawv siv UV-curable inks uas qhuav los ntawm raug ultraviolet lub teeb, kom ntseeg tau tias zoo, tsis muaj dej, thiab fade-resistant prints.
Cov tshuab luam ntawv no muaj lub txaj tiaj tus uas muab cov ntaub ntawv luam tawm, thiab UV-curable number case yog jetted rau saum npoo ntawm cov khoom los tsim cov ntawv luam tawm. Cov tshuab luam ntawv loj UV flatbed muaj ntau lub peev xwm luam ntawv, suav nrog kev luam ntawv ncaj qha rau ntau yam ntaub ntawv xws li yas, ntoo, iav, hlau, thiab acrylic ntawm lwm tus.
Qee yam ntawm cov yam ntxwv tseem ceeb ntawm cov tshuab luam ntawv loj UV flatbed muaj xws li kev luam ntawv siab, luam ntawv ceev ceev, kev siv tshuab luam ntawv sib txawv, ntau txheej luam ntawv, thiab tsis siv neeg lub taub hau ntxuav. Cov yam ntxwv no ua rau lawv zoo tagnrho rau kev luam cov duab loj xws li cov ntawv tshaj tawm, banners, billboards, thiab cov khoom siv rau kev tshaj tawm sab hauv thiab sab nraum zoov.
Tsis tas li ntawd, cov tshuab luam ntawv loj UV flatbed yog lub zog txuag, ua rau lawv ib puag ncig zoo nrog cov nqi khiav lag luam. Lawv tau dhau los ua neeg nyiam hauv kev lag luam luam ntawv vim lawv cov khoom zoo, ntau yam thiab muaj peev xwm luam ntawv tau zoo.
Cov khoom parameter
| Qauv No. | UV2513 |
| Lub taub hau tshuab luam ntawv | 3/4pc I3200-U1 |
| Tshuab Hom | Tsis siv neeg, Flatbed, UV LED Teeb, Digital tshuab luam ntawv |
| Max Print Loj | 2500 * 1300 hli |
| Max Print Qhov siab | 10 cm |
| Cov ntaub ntawv luam tawm | Hlau, Yas, iav, Ntoo, Ceramic, Acrylic, Tawv, thiab lwm yam, |
| Phau Ntawv Qhia | Unidirectional Printing lossis Bi-directional Printing hom |
| Kev daws teeb meem luam ntawv | Hom 1: CMYK ntxiv rau W ntxiv rau V 3 taub hau; 4 dhau ntau lawm ceev 12-14sqm/h Hom 2: 2CMYk ntxiv rau 2W; ; 4 dhau ntau lawm ceev 20-24sqm/h Hom 3: 4 CMYK; ; 4 dhau ntau lawm ceev 50-60sqm/h |
| Nozzle Number | 3200 |
| Xim Xim | CMYK + W + C |
| Hom cwj mem | UV Ink |
| Ink System | 1500ml Ink Lub raj mis |
| Cov ntaub ntawv hom | PDF, JPG, TIFF, EPS, AI, thiab lwm yam |
| Max Media Nyhav | 75 KG/m² |
| Kev Ua Haujlwm | WINDOW 7/WINDOWS 8/WINDOWS 10 |
| Interface | 3. 0 LAN |
| Software | Photoprint/Maintop |
| Lus | Suav/English |
| Qhov hluav taws xob | 220V |
| Ua haujlwm ib puag ncig | kub: 27 degree - 35 degree, av noo: 40 feem pua -60 feem pua |
| Hom pob | Ntoo Case |
| Tshuab loj | 4100 * 10000 * 1350 hli |
Qhov zoo ntawm covLoj hom UV Flatbed tshuab luam ntawv
 |  | |
Tswb On Ink Tank ceeb toom thaum tsis muaj number case, intelligentize heev | Dural Suction Motors Sucks cov ntaub ntawv ruaj khov thiab yooj yim dua. |
 |  |  | ||
Print Head Anti-collision System Sau txhua yam ntaub ntawv tsis zoo li qub, txuag cov ntaub ntawv nqi. | HiWin High Speed Mute Slider ruaj khov hom Guide railway, ua hauj lwm tsis muaj suab nrov thiab du. | Y Axis Pob Screw Movement Ua hauj lwm ruaj khov thiab ntev lub sij hawm lub tshuab luam ntawv. |
Nov yog qee qhov zoo ntawm kev siv lubLoj hom UV Flatbed tshuab luam ntawv:
1. Muaj peev xwm luam ntawv ntau yam: Cov ntawv loj loj UV Flatbed tshuab luam ntawv muaj ntau yam thiab tuaj yeem siv los luam tawm ntawm ntau yam ntaub ntawv, suav nrog cov txheej txheem nruj, cov ntaub ntawv hloov pauv, thiab txawm tias cov duab tsis sib xws.
2. High-Quality Graphics: UV Flatbed Printers siv cov tshuab inkjet siab heev uas tsim cov duab zoo nrog cov xim zoo nkauj, cov ntsiab lus ntse, thiab cov xim sib xws.
3. Ceev thiab Efficiency: Cov Ntawv Loj Loj UV Flatbed Printers muaj kev ceev ntau lawm thiab tuaj yeem tsim cov ntawv loj loj tau sai thiab ua tau zoo, txiav lub sijhawm uas xav tau rau kev pub khoom noj rau hauv lub tshuab luam ntawv.
4. Durable thiab ntev-ntev Printing: UV curable inks siv nyob rau hauv UV Flatbed Printers muab zoo adhesion thiab durability txawm tias thaum raug rau sab nraum zoov ib puag ncig, ua rau lawv zoo tagnrho rau sab nraum zoov signage thiab graphics.
5. Tus nqi zoo: UV Flatbed Printers yog tus nqi ntau dua li kev luam ntawv ib txwm siv vim tias lawv yuav tsum tau teem sijhawm tsawg, siv tus number case tsawg, thiab tsim cov khoom pov tseg tsawg.
6. Customization thiab Personalization: Nrog UV Flatbed Printers, nws muaj peev xwm tsim cov kev cai thiab cov ntawv luam tawm tus kheej, suav nrog cov ntaub ntawv luam tawm txawv txav, uas yog qhov tshwj xeeb tshaj yog rau cov tuam txhab uas xav tau ntau tus kheej hauv lawv cov lag luam.
7. Ib puag ncig tus phooj ywg: UV Flatbed Printers yog eco-friendly vim lawv siv UV curable inks uas tsis muaj teeb meem VOCs (volatile organic compounds) uas muaj nyob rau hauv cov kuab tshuaj inks.
